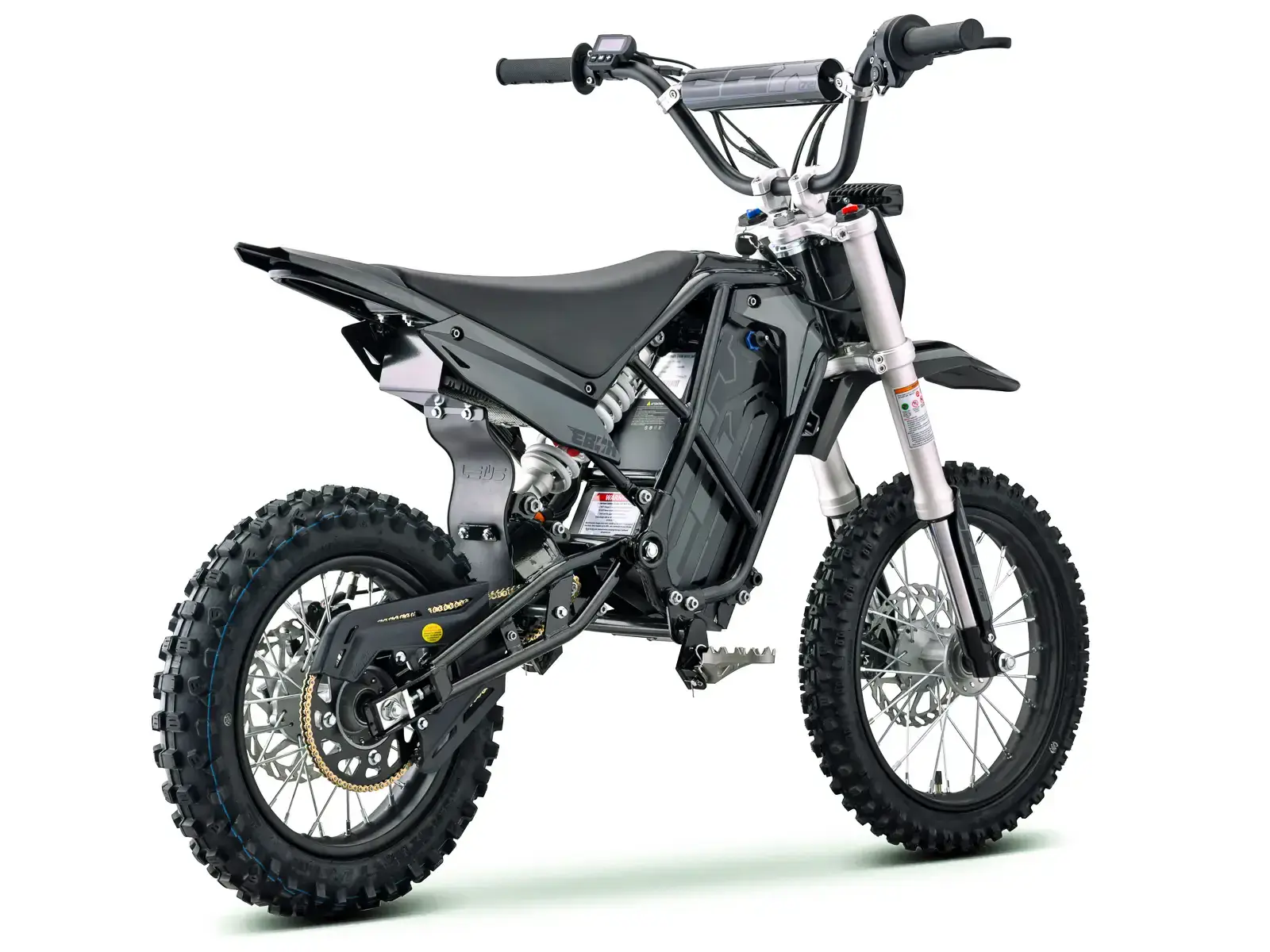

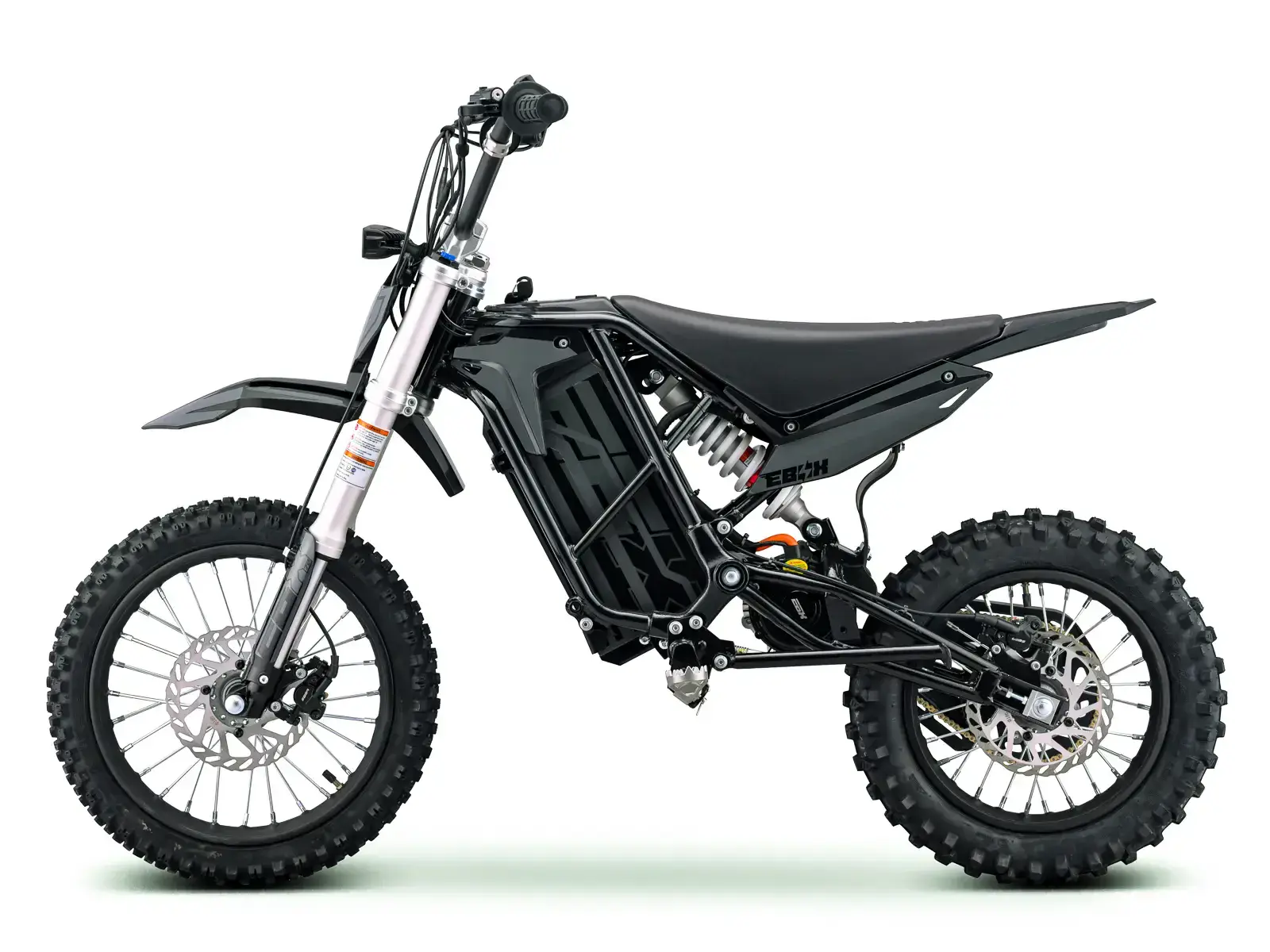

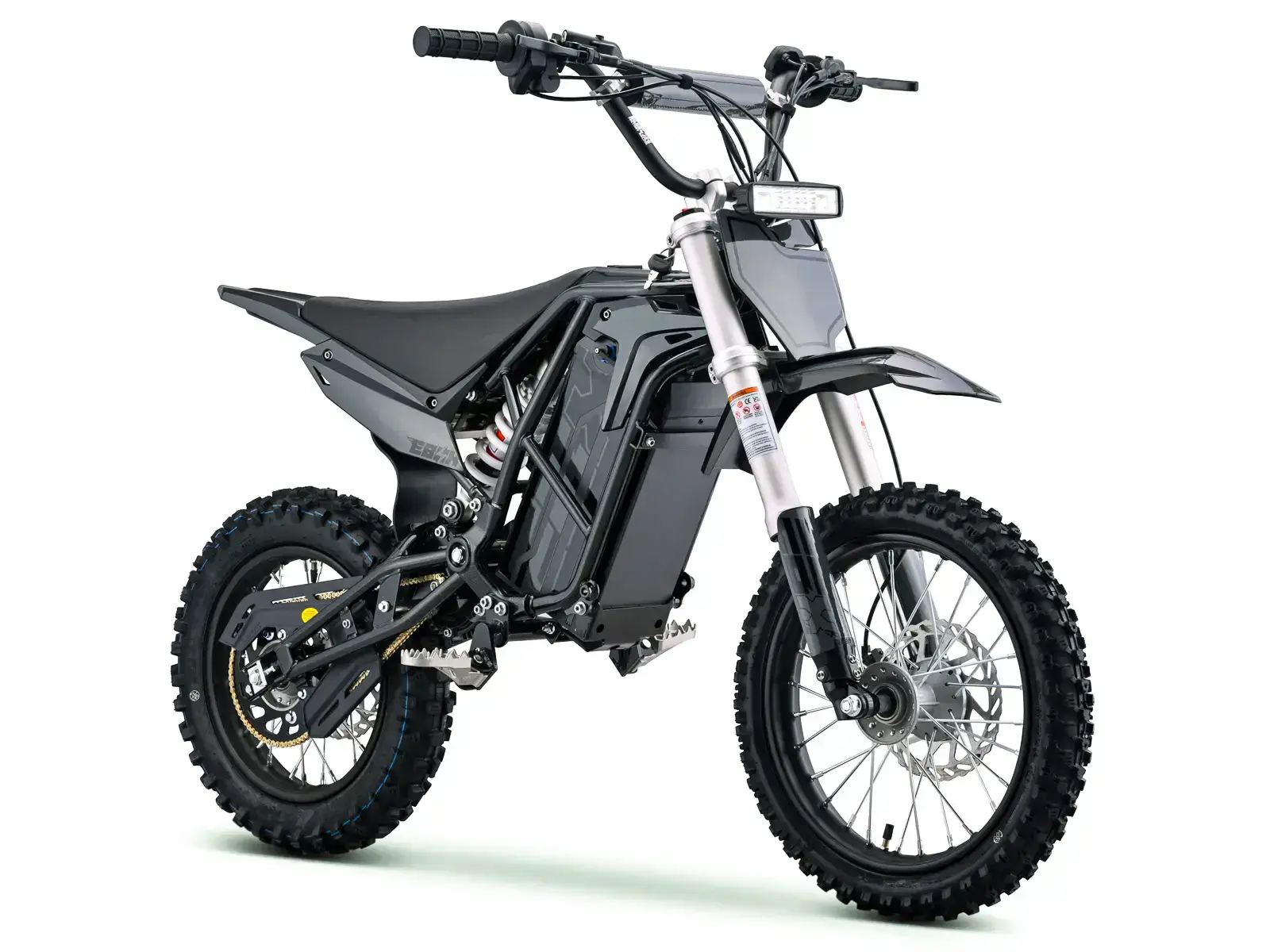

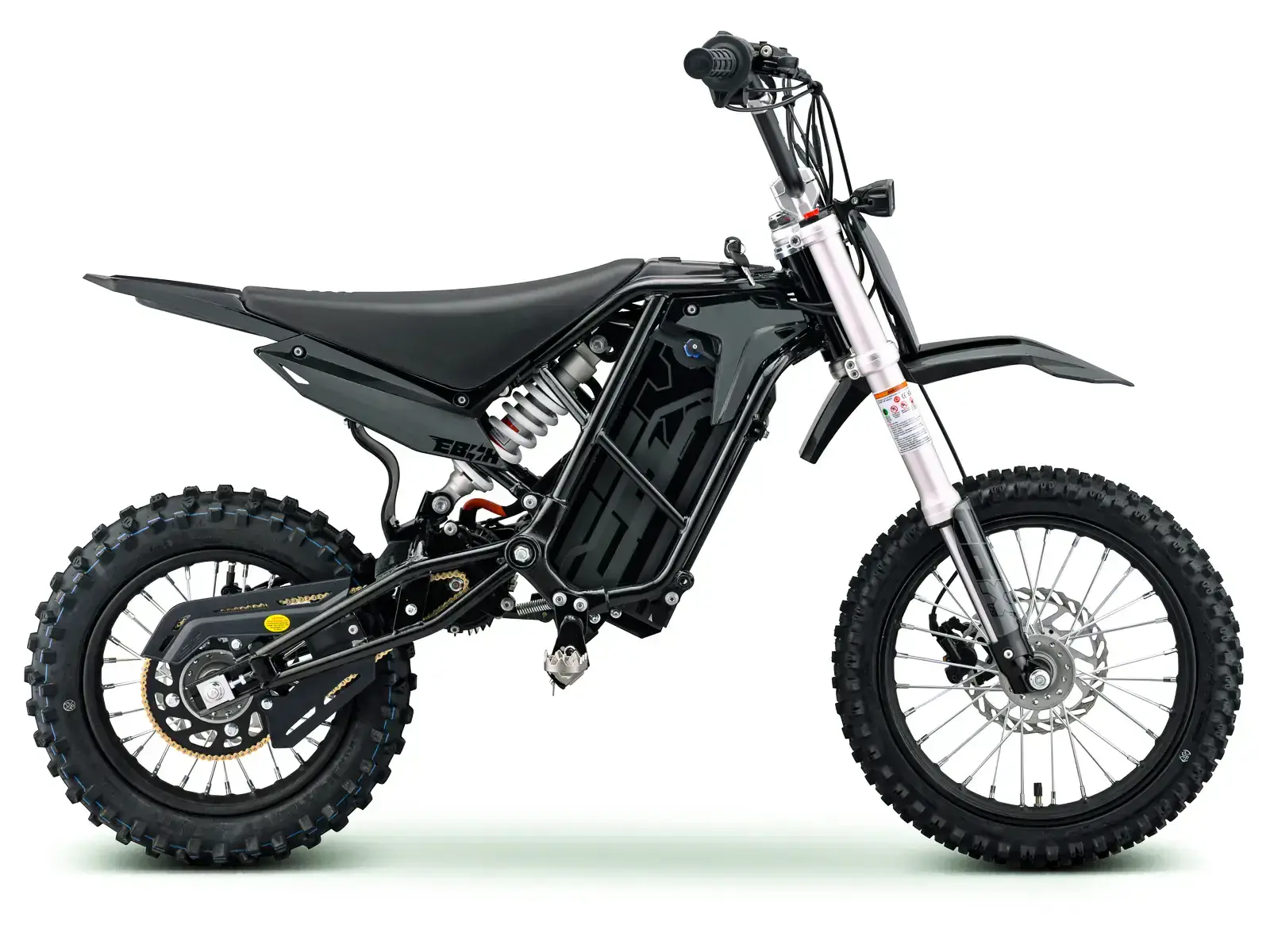

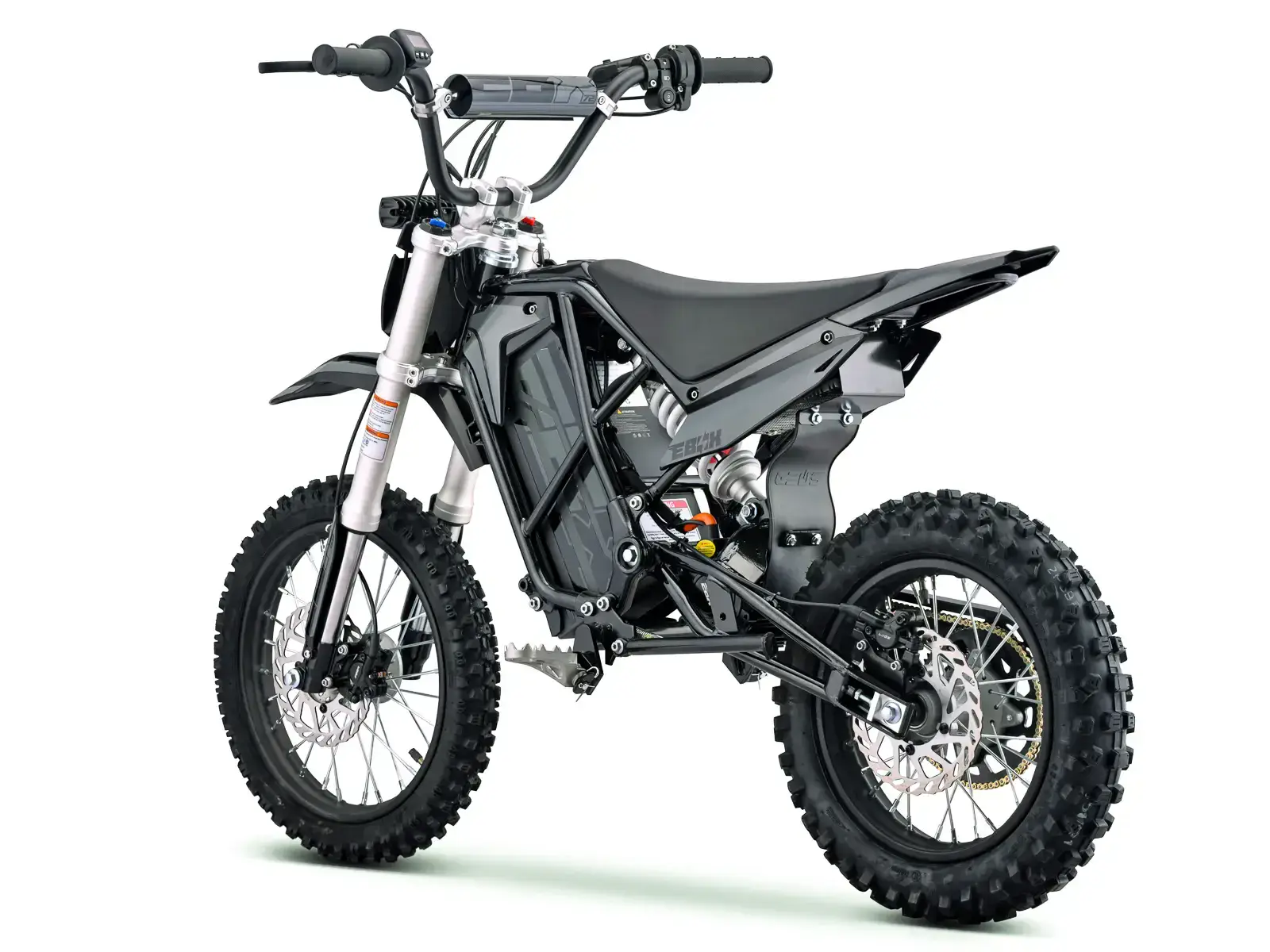

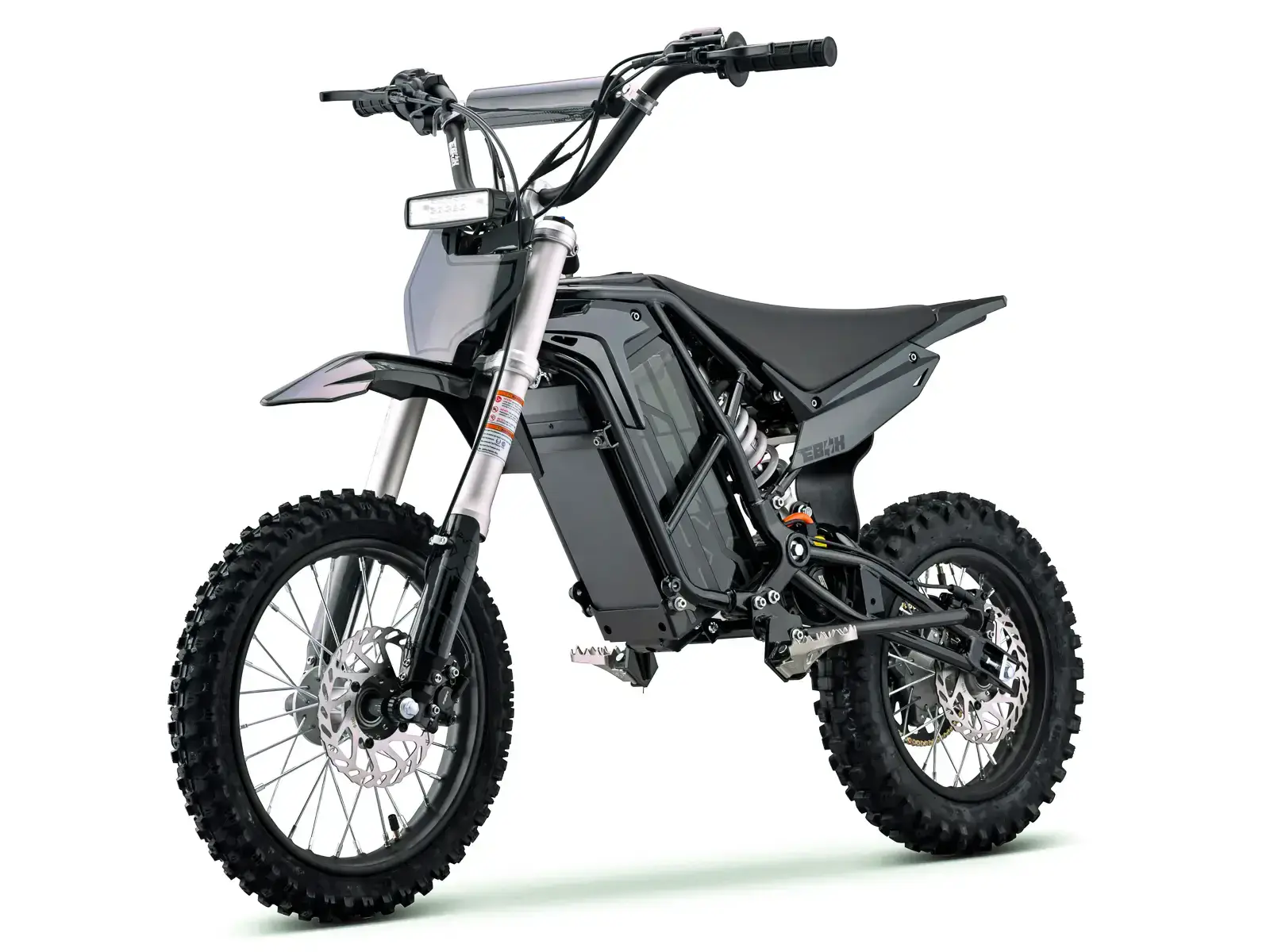

STOMP EBOX V3 72RS Electric MX Pit Bike - BLACK

BRAND NEW - SUPPLIED FULLY BUILT, PDI'd and READY TO RIDE - CALL US FOR MORE INFORMATION 028 9131 0297

AVAILABLE INSTORE AND WE CAN ALSO OFFER DELIVERY ACROSS NORTHERN IRELAND & IRELAND.  CALL FOR DETAILS

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain!

Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance.

Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.

Manufacturer STOMP EBOX

Model EBOX V3 72

Frame Design V3 wide frame (190mm) large capacity battery, race inspired revised geometry, Increased fork travel, increased pre-load and heavier oil, dropper footpeg bar.

Bar Risers Alloy Cast 36mm rise Ø22.2

Handlebar EBOX Race 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad

Front Suspension 150mm travel USD

Seat EBOX fat seat

Wheel Size 14/12

Tyres Upgraded 60/100-14 & 80/100-12 Dirt

Front Brake Hyraulic Disc (Right lever) e-moto brakes, 180mm rotor, 4 bolt

Rear Brake Hyraulic Disc (Left lever) e-moto brakes, 180mm rotor, 4 bolt

Gearing Front 10T, rear 70T

Chain Upgraded 219H 108L

Motor 72V EBX PMSM motor with temp feedback and encoder

Motor Voltage 72v

Peak Power 6.3KW (8.5hp)

Rated Power 5.4KW

Max RPM 9,000

Battery New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch

Controller 80 Amp fardriver controller

Throttle SURRON style full twist

Display TFT odometer display with 3 speed modes and fault code analysis software

Connectors Automotive connectors with sealed wiring harness

Lights LED headlight and switch

Charger AC 100-240V, Output: 84V, 6A

Charge Time 4-5 hours

Range Per Charge 28-31 miles (45-50Km)

External Adjustability 3 riding modes

Top Speed 55mph (89Km/h)

Waterproof IP54

Other USB A + C charging port

Wheelbase 980mm

Seat Height 650mm

Warranty

EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty
