Braktec Monobloc Trials Front Brake Caliper (New Style) - Red


Make 6 weekly payments of £20.83.

Interest free. Learn More

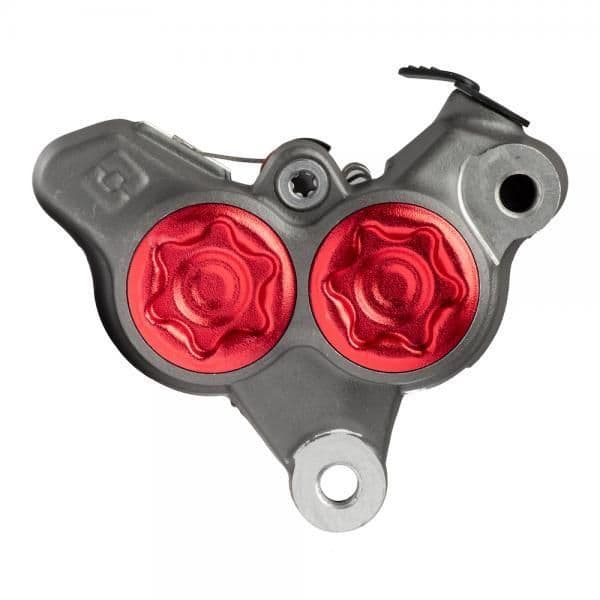

Original Braktec Monobloc front brake caliper with 4 pistons.

Latest spec caliper from Braktec.

This Braktec Caliper can be used on most trials bikes from the late 90's onwards
(as far as mounts go on LHS fork leg). Just note it has an M8 brake line fitting though.
Many earlier bikes with the split block 4 piston AJP caliper, or even earlier 2 piston
AJP caliper all used a M10 fitting on their hoses.
So to use it on these earlier bikes you need to upspec the hose as well.

* repair kit : BRK CAL RP KT 853078MO0
* banjo Bolt M8 with M5 valve: BRK CAL BLT 326000MO0
* brake pads: BP388 / BP388 RACE / BPGFG1805-FD511 / BPGFG1395-FD511
